产品特性：
采用优质钢加工
平面阀芯在使用时不易使外界灰尘以及异物进入,清洁方便。
螺纹连接设计，更易于接头的连接和断开，减少泄露。
KSGP的母接头和公接头可以在残余压力高达250bar连接和断开。
应用场合：
主要用于挖掘机、油田、钻机、井口传动装置、起重机等对高压有要求的所有设备。
产品规格：
材质：主体优质钢镀锌/锌镍
密封件: 标准NBR丁腈橡胶， FKM,EPDM可供选择
背托环: PTFE
工作温度: 用标准密封圈 -25℃ + 125℃

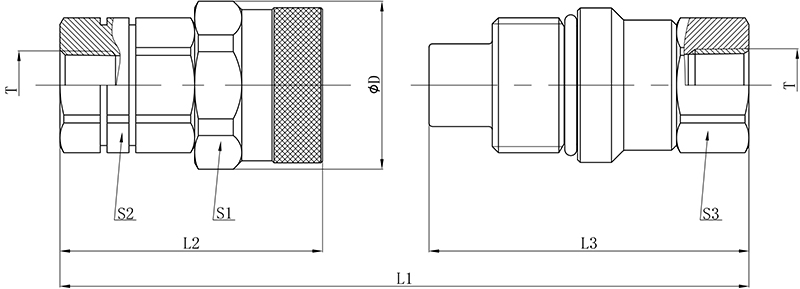

| 力浦液压 | 国际标准 | L1 | L2 | L3 | ØD | S1 | S2 | S3 | T | 母接头编号 | 公接头编号 |
| 04 | 6.3 | 113.3 | 54.1 | 71.0 | 38.8 | 36.0 | 27.0 | 22.0 | 1/4"BSP | KSGP-04-04F-BSP | KSGP-04-04M-BSP |
| 1/4"NPT | KSGP-04-04F-NPT | KSGP-04-04M-NPT | |||||||||
| 06 | 10 | 131.3 | 65.8 | 82.5 | 41.8 | 38.0 | 30.0 | 27.0 | 3/8"BSP | KSGP-06-06F-BSP | KSGP-06-06M-BSP |
| 3/8"NPT | KSGP-06-06F-NPT | KSGP-06-06M-NPT | |||||||||
| 138.8 | 70.8 | 85.0 | 1/2"BSP | KSGP-06-08F-BSP | KSGP-06-08M-BSP | ||||||
| 1/2"NPT | KSGP-06-08F-NPT | KSGP-06-08M-NPT | |||||||||
| 08 | 12.5 | 154.6 | 77.8 | 95.0 | 49.8 | 46.0 | 36.0 | 36.0 | 1/2"BSP | KSGP-08-08F-BSP | KSGP-08-08M-BSP |
| 1/2"NPT | KSGP-08-08F-NPT | KSGP-08-08M-NPT | |||||||||
| 164.0 | 84.8 | 97.4 | 3/4"BSP | KSGP-08-12F-BSP | KSGP-08-12M-BSP | ||||||
| 3/4"NPT | KSGP-08-12F-NPT | KSGP-08-12M-NPT | |||||||||
| 12 | 20 | 165.4 | 84.9 | 99.0 | 53.8 | 50.0 | 41.0 | 36.0 | 3/4"BSP | KSGP-12-12F-BSP | KSGP-12-12M-BSP |
| 3/4"NPT | KSGP-12-12F-NPT | KSGP-12-12M-NPT | |||||||||
| 16 | 25 | 187.5 | 96.7 | 113.6 | 58.8 | 55.0 | 46.0 | 46.0 | 3/4"BSP | KSGP-16-12F-BSP | KSGP-16-12M-BSP |
| 3/4"NPT | KSGP-16-12F-NPT | KSGP-16-12M-NPT | |||||||||
| 190.5 | 99.7 | 113.6 | 1"BSP | KSGP-16-16F-BSP | KSGP-16-16M-BSP | ||||||
| 1"NPT | KSGP-16-16F-NPT | KSGP-16-16M-NPT | |||||||||
| 20 | 31.5 | 205.2 | 105.8 | 123.4 | 69.8 | 65.0 | 55.0 | 55.0 | 1"BSP | KSGP-20-16F-BSP | KSGP-20-16M-BSP |
| 1"NPT | KSGP-20-16F-NPT | KSGP-20-16M-NPT | |||||||||
| 206.2 | 106.8 | 123.4 | 1-1/4"BSP | KSGP-20-20F-BSP | KSGP-20-20M-BSP | ||||||
| 1-1/4"NPT | KSGP-20-20F-NPT | KSGP-20-20M-NPT | |||||||||
| 24 | 40 | 253.9 | 133.5 | 150.0 | 92.0 | 85.0 | 65.0 | 65.0 | 1-1/4"BSP | KSGP-24-20F-BSP | KSGP-24-20M-BSP |
| 1-1/4"NPT | KSGP-24-20F-NPT | KSGP-24-20M-NPT | |||||||||
| 1-1/2"BSP | KSGP-24-24F-BSP | KSGP-24-24M-BSP | |||||||||
| 1-1/2"NPT | KSGP-24-24F-NPT | KSGP-24-24M-NPT | |||||||||
| 32 | 50 | 383.5 | 224.8 | 218.4 | 200.0 | 90.0 | 90.0 | 2"BSP | KSGP-32-32F-BSP | KSGP-32-32M-BSP | |
| 2"NPT | KSGP-32-32F-NPT | KSGP-32-32M-NPT |
技术特性：
| 规格 | 最大工作压力 | 额定流量 | 最大流量 | 最小爆破压力 | 液体溢出量 | ||||||
| 接头体 | 接头套 | 连接下 | |||||||||
| 力浦液压 | 国际标准 | (bar) | (l/m) | (bar) | (bar) | (bar) | (cc) | ||||
| 04 | 6.3 | 600 | 12 | 1500 | 1260 | 1500 | 0.008 | ||||
| 06 | 10 | 550 | 23 | 1400 | 1000 | 1400 | 0.010 | ||||
| 08 | 12.5 | 550 | 45 | 1400 | 1000 | 1400 | 0.012 | ||||
| 12 | 20 | 550 | 76 | 1400 | 1000 | 1400 | 0.015 | ||||
| 16 | 25 | 500 | 100 | 1250 | 1000 | 1250 | 0.020 | ||||
| 20 | 31.5 | 470 | 189 | 1200 | 800 | 1200 | 0.030 | ||||
| 24 | 40 | 400 | 379 | 1100 | 800 | 1100 | 0.050 | ||||
| 32 | 50 | 350 | 758 | 1100 | 800 | 1100 | 0.100 | ||||

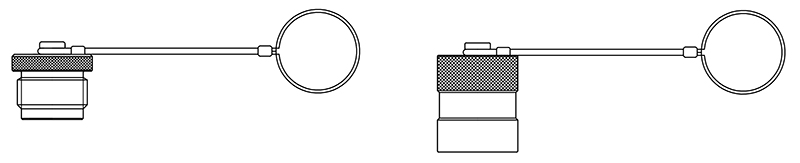

防尘帽塞：
| 力浦液压 | 国际标准 | 母接头防尘塞 | 公接头防尘帽 | 材质 |
| 04 | 6.3 | KSGP-04-ADP | KSGP-04-ADC | 铝 |
| 06 | 10 | KSGP-06-ADP | KSGP-06-ADC | 铝 |
| 08 | 12.5 | KSGP-08-ADP | KSGP-08-ADC | 铝 |
| 12 | 20 | KSGP-12-ADP | KSGP-12-ADC | 铝 |
| 16 | 25 | KSGP-16-ADP | KSGP-16-ADC | 铝 |
| 20 | 31.5 | KSGP-20-ADP | KSGP-20-ADC | 铝 |
| 24 | 40 | KSGP-24-ADP | KSGP-24-ADC | 铝 |
| 32 | 50 | KSGP-32-ADP | KSGP-32-ADC | 铝 |
