产品特性：

按照标准国际标准16028生产

采用优质钢加工

具有两端齐平特点，使用时不易使外界灰尘以及异物进入,清洁方便。

单手操作，连接断开便捷，泄漏量极少。

带有安全锁定功能，防止非工作状态时断开。

应用场合：

锤电路

高压脉冲应用

不漏的环境

工程机械，建筑工厂，移动设备，一般工业，核能，采矿和农业产业

产品规格：

标准：国际标准 16028

材质：主体优质钢镀锌/锌镍

密封件: 标准NBR丁腈橡胶， FKM,PU&EPDM可供选择

背托环: PTFE

工作温度: 用标准密封圈 -25℃ + 125℃

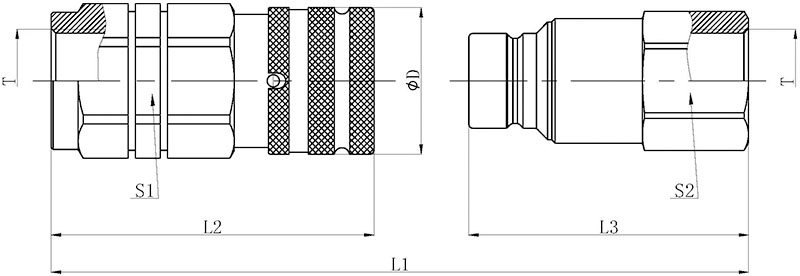

力浦液压国际标准L1L2L3ØDS1S2T母接头编号公接头编号
046.3101.057.953.828.027.022.01/4"BSPKSP3-04-04F-BSPKSP3-04-04M-BSP








1/4"NPTKSP3-04-04F-NPTKSP3-04-04M-NPT








3/8"BSPKSP3-04-06F-BSPKSP3-04-06M-BSP








3/8"NPTKSP3-04-06F-NPTKSP3-04-06M-NPT








9/16"UNFKSP3-04F-UNF916KSP3-04M-UNF916
0610113.069.060.032.030.027.03/8"BSPKSP3-06-06F-BSPKSP3-06-06M-BSP








3/8"NPTKSP3-06-06F-NPTKSP3-06-06M-NPT








9/16"UNFKSP3-06F-UNF916KSP3-06M-UNF916


121.074.063.0


1/2"BSPKSP3-06-08F-BSPKSP3-06-08M-BSP








1/2"NPTKSP3-06-08F-NPTKSP3-06-08M-NPT








3/4"UNFKSP3-06F-UNF34KSP3-06M-UNF34








7/8"UNFKSP3-06F-UNF78KSP3-06M-UNF78
0812.5138.183.771.538.036.036.01/2"BSPKSP3-08-08F-BSPKSP3-08-08M-BSP








1/2"NPTKSP3-08-08F-NPTKSP3-08-08M-NPT








3/4"BSPKSP3-08-12F-BSPKSP3-08-12M-BSP








3/4"NPTKSP3-08-12F-NPTKSP3-08-12M-NPT








7/8"UNFKSP3-08F-UNF78KSP3-08M-UNF78








1-1/16"UNFKSP3-08F-UNF1116KSP3-08M-UNF1116
1016.0139.584.073.042.041.036.01/2"BSPKSP3-10-08F-BSPKSP3-10-08M-BSP








1/2"NPTKSP3-10-08F-NPTKSP3-10-08M-NPT








3/4"BSPKSP3-10-12F-BSPKSP3-10-12M-BSP








3/4"NPTKSP3-10-12F-NPTKSP3-10-12M-NPT








7/8"UNFKSP3-10F-UNF78KSP3-10M-UNF78








1-1/16"UNFKSP3-10F-UNF1116KSP3-10M-UNF1116
1220161.298.684.048.046.046.03/4"BSPKSP3-12-12F-BSPKSP3-12-12M-BSP








3/4"NPTKSP3-12-12F-NPTKSP3-12-12M-NPT








1"BSPKSP3-12-16F-BSPKSP3-12-16M-BSP








1"NPTKSP3-12-16F-NPTKSP3-12-16M-NPT








1-1/16"UNFKSP3-12F-UNF1116KSP3-12M-UNF1116








1-5/16"UNFKSP3-12F-UNF1516KSP3-12M-UNF1516
1625178.8111.590.055.055.055.01"BSPKSP3-16-16F-BSPKSP3-16-16M-BSP








1"NPTKSP3-16-16F-NPTKSP3-16-16M-NPT








1-1/4"BSPKSP3-16-20F-BSPKSP3-16-20M-BSP








1-1/4"NPTKSP3-16-20F-NPTKSP3-16-20M-NPT








1-5/16"UNFKSP3-16F-UNF1516KSP3-16M-UNF1516








1-5/8"UNFKSP3-16F-UNF158KSP3-16M-UNF158
2440209.5118.5119.879.070.070.01-1/2"BSPKSP3-24-24F-BSPKSP3-24-24M-BSP








1-1/2"NPTKSP3-24-24F-NPTKSP3-24-24M-NPT
3250282.3145.5173.4103.080.080.02"BSPKSP3-32-32F-BSPKSP3-32-32M-BSP








2"NPTKSP3-32-32F-NPTKSP3-32-32M-NPT

技术特性：

规格最大工作压力额定流量最大流量最小爆破压力液体溢出量
接头体接头套连接下
力浦液压国际标准(bar)(l/m)(l/m)(bar)(bar)(bar)(cc)
046.340012241200150017000.008
061035023461050110015000.010
0812.535045901050110015000.012
1016.0350741501050110015000.015
12203501002001050110015000.020
16252601892808008008000.030
24402503797001200120011000.050
325025075710001000100010000.100

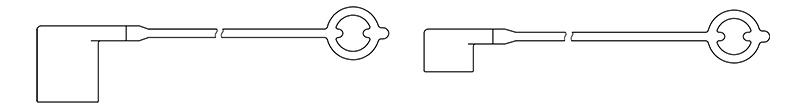

防尘帽塞：


力浦液压国际标准母接头防尘帽公接头防尘帽材质颜色
046.3KSP-04-PDCKSP-04-PDP塑料红色
0610KSP-06-PDCKSP-06-PDP塑料红色
0812.5KSP-08-PDCKSP-08-PDP塑料红色
1016.0KSP-10-PDCKSP-10-PDP塑料红色
1220KSP-12-PDCKSP-12-PDP塑料红色
1625KSP-16-PDCKSP-16-PDP塑料红色

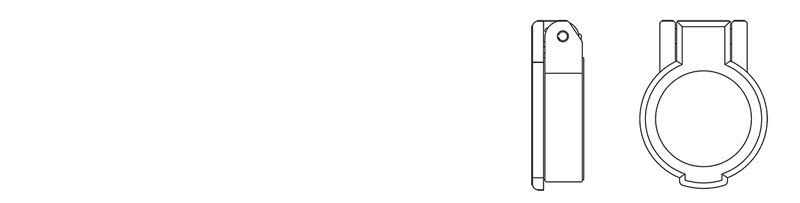

力浦液压国际标准母接头防尘帽材质颜色
0812.5KSP-PP-08塑料红色
