产品特性：
按照标准国际标准14541生产
双止阀螺纹连接
末端有多种螺纹形式可供选择：BSP, NPT, 公制螺纹等
自锁连接机构，防止振动造成的意外断开。
螺纹系统允许在残压下的螺纹连接
应用场合：
推荐用于建筑设备，拆除设备，农业机械和其他重型工业应用。
产品规格：
标准: 国际标准 14541
材质:主体优质钢镀锌
密封件: 标准NBR丁腈橡胶， FKM,EPDM可供选择
背托环: PTFE
工作温度: 用标准密封圈 -25℃ + 125℃

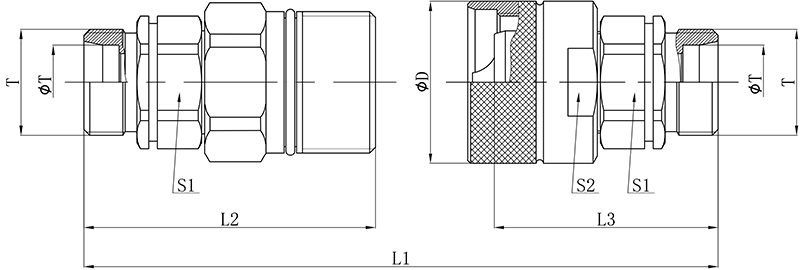

| 力浦液压 | 国际标准 | L1 | L2 | L3 | ØD | S1 | S2 | ØT | T | 母接头编号 | 公接头编号 |
| 04 | 6.3 | 91.0 | 60.0 | 45.5 | 35.0 | 19.0 | 30.0 | 08L | M14×1.5 | KSG3-BK-04F-M1415L | KSG3-BK-04M-M1415L |
| 06 | 10 | 98.5 | 64.2 | 49.5 | 34.5 | 22.0 | 30.0 | 06L | M12×1.5 | KSG3-BK-06F-M1215L | KSG3-BK-06M-M1215L |
| 08L | M14×1.5 | KSG3-BK-06F-M1415L | KSG3-BK-06M-M1415L | ||||||||
| 10L | M16×1.5 | KSG3-BK-06F-M1615L | KSG3-BK-06M-M1615L | ||||||||
| 12L | M18×1.5 | KSG3-BK-06F-M1815L | KSG3-BK-06M-M1815L | ||||||||
| 08 | 12.5 | 97.0 | 63.5 | 50.5 | 42.0 | 27.0 | 36.0 | 08L | M14×1.5 | KSG3-BK-08F-M1415L | KSG3-BK-08M-M1415L |
| 99.0 | 64.5 | 51.5 | 10L | M16×1.5 | KSG3-BK-08F-M1615L | KSG3-BK-08M-M1615L | |||||
| 99.0 | 64.5 | 51.5 | 12L | M18×1.5 | KSG3-BK-08F-M1815L | KSG3-BK-08M-M1815L | |||||
| 101.0 | 65.5 | 52.5 | 15L | M22×1.5 | KSG3-BK-08F-M2215L | KSG3-BK-08M-M2215L | |||||
| 101.0 | 65.5 | 52.5 | 18L | M26×1.5 | KSG3-BK-08F-M2615L | KSG3-BK-08M-M2615L | |||||
| 12 | 20 | 132.0 | 85.0 | 68.0 | 48.0 | 36.0 | 41.0 | 12L | M18×1.5 | KSG3-BK-12F-M1815L | KSG3-BK-12M-M1815L |
| 15L | M22×1.5 | KSG3-BK-12F-M2215L | KSG3-BK-12M-M2215L | ||||||||
| 18L | M26×1.5 | KSG3-BK-12F-M2615L | KSG3-BK-12M-M2615L | ||||||||
| 22L | M30×2.0 | KSG3-BK-12F-M3020L | KSG3-BK-12M-M3020L | ||||||||
| 16 | 25 | 143.0 | 96.0 | 73.0 | 55.0 | 41.0 | 50.0 | 18L | M26×1.5 | KSG3-BK-16F-M2615L | KSG3-BK-16M-M2615L |
| 22L | M30×2.0 | KSG3-BK-16F-M3020L | KSG3-BK-16M-M3020L | ||||||||
| 28L | M36×2.0 | KSG3-BK-16F-M3620L | KSG3-BK-16M-M3620L | ||||||||
| 154.0 | 101.5 | 78.5 | 46.0 | 35L | M45×2.0 | KSG3-BK-16F-M4520L | KSG3-BK-16M-M4520L |
重型：
| 06 | 10 | 98.5 | 64.2 | 49.5 | 34.5 | 22.0 | 30.0 | 08H | M16×1.5 | KSG3-BK-06F-M1615H | KSG3-BK-06M-M1615H |
| 10H | M18×1.5 | KSG3-BK-06F-M1815H | KSG3-BK-06M-M1815H | ||||||||
| 12H | M20×1.5 | KSG3-BK-06F-M2015H | KSG3-BK-06M-M2015H | ||||||||
| 08 | 12.5 | 101.0 | 65.5 | 52.5 | 42.0 | 27.0 | 36.0 | 10H | M18×1.5 | KSG3-BK-08F-M1815H | KSG3-BK-08M-M1815H |
| 101.0 | 65.5 | 52.5 | 12H | M20×1.5 | KSG3-BK-08F-M2015H | KSG3-BK-08M-M2015H | |||||
| 105.0 | 67.5 | 54.5 | 14H | M22×1.5 | KSG3-BK-08F-M2215H | KSG3-BK-08M-M2215H | |||||
| 105.0 | 67.5 | 54.5 | 16H | M24×1.5 | KSG3-BK-08F-M2415H | KSG3-BK-08M-M2415H | |||||
| 109.0 | 69.5 | 56.5 | 30.0 | 20H | M30×2.0 | KSG3-BK-08F-M3020H | KSG3-BK-08M-M3020H | ||||
| 12 | 20 | 132.0 | 85.0 | 68.0 | 48.0 | 36.0 | 41.0 | 10H | M18×1.5 | KSG3-BK-12F-M1815H | KSG3-BK-12M-M1815H |
| 12H | M20×1.5 | KSG3-BK-12F-M2015H | KSG3-BK-12M-M2015H | ||||||||
| 14H | M22×1.5 | KSG3-BK-12F-M2215H | KSG3-BK-12M-M2215H | ||||||||
| 16H | M24×1.5 | KSG3-BK-12F-M2415H | KSG3-BK-12M-M2415H | ||||||||
| 20H | M30×2.0 | KSG3-BK-12F-M3020H | KSG3-BK-12M-M3020H | ||||||||
| 16 | 25 | 143.0 | 96.0 | 73.0 | 55.0 | 41.0 | 50.0 | 20H | M30×2.0 | KSG3-BK-16F-M3020H | KSG3-BK-16M-M3020H |
| 149.0 | 99.0 | 76.0 | 25H | M36×2.0 | KSG3-BK-16F-M3620H | KSG3-BK-16M-M3620H | |||||
| 154.0 | 101.5 | 78.5 | 46.0 | 30H | M42×2.0 | KSG3-BK-16F-M4220H | KSG3-BK-16M-M4220H | ||||
| 20 | 31.5 | 205.0 | 122.0 | 119.0 | 80.0 | 65.0 | 75.0 | 30H | M42×2.0 | KSG3-BK-20F-M4220H | KSG3-BK-20M-M4220H |
| 38H | M52×2.0 | KSG3-BK-20F-M5220H | KSG3-BK-20M-M5220H |
技术特性：
| 规格 | 最大工作压力 | 额定流量 | 最大流量 | 最小爆破压力 | 液体溢出量 | ||||||
| 接头体 | 接头套 | 连接下 | |||||||||
| 力浦液压 | 国际标准 | (bar) | (l/m) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 450 | 12 | 17 | 1900 | 2700 | 2500 | 0.8 | |||
| 06 | 10 | 400 | 23 | 46 | 1300 | 1500 | 1800 | 1.4 | |||
| 08 | 12.5 | 400 | 45 | 90 | 1200 | 1500 | 1400 | 2.7 | |||
| 12 | 20 | 300 | 106 | 190 | 1000 | 1300 | 1400 | 9.3 | |||
| 16 | 25 | 300 | 189 | 280 | 1000 | 1300 | 1400 | 16 | |||
| 20 | 31.5 | 300 | 288 | 480 | 1000 | 1000 | 1000 | 30 | |||

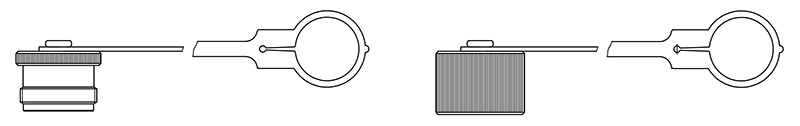

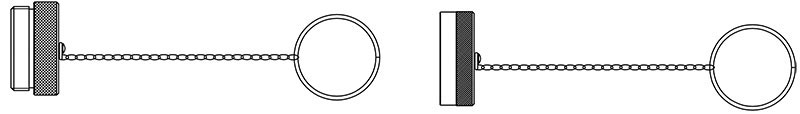

防尘帽塞：
| 力浦液压 | 国际标准 | 公接头防尘塞 | 母接头防尘帽 | 材质 | 颜色 | |||
| 04 | 6.3 | KSG3-04-PDP | KSG3-04-PDC | 塑料 | 红色 | |||
| 06 | 10 | KSG3-06-PDP | KSG3-06-PDC | 塑料 | 红色 | |||
| 08 | 12.5 | KSG3-08-PDP | KSG3-08-PDC | 塑料 | 红色 | |||
| 12 | 20 | KSG3-12-PDP | KSG3-12-PDC | 塑料 | 红色 | |||
| 16 | 25 | KSG3-16-PDP | KSG3-16-PDC | 塑料 | 红色 | |||
| 力浦液压 | 国际标准 | 公接头防尘塞 | 母接头防尘帽 | 材质 | |||
| 04 | 6.3 | KSG3-04-ADP | KSG3-04-ADC | 铝 | |||
| 06 | 10 | KSG3-06-ADP | KSG3-06-ADC | 铝 | |||
| 08 | 12.5 | KSG3-08-ADP | KSG3-08-ADC | 铝 | |||
| 12 | 20 | KSG3-12-ADP | KSG3-12-ADC | 铝 | |||
| 16 | 25 | KSG3-16-ADP | KSG3-16-ADC | 铝 | |||
| 20 | 31.5 | KSG3-20-ADP | KSG3-20-ADC | 铝 | |||
